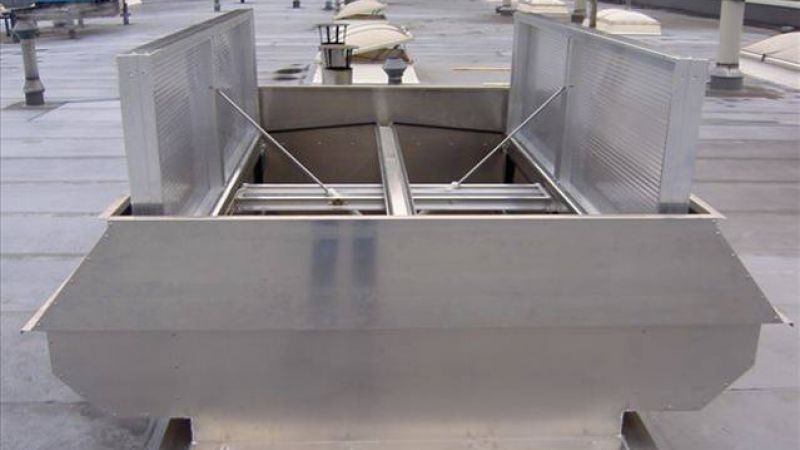

Apollo ATI natural flap ventilator with weathered ventilation facility

Apollo ATI is a natural flap ventilator that can provide both full extraction through its top flaps and weathered ventilation via longitudinal side flaps. It is a dual purpose ventilator, providing both day to day and smoke control ventilation and is generally installed onto roofs, providing high level extract to most kinds of industrial buildings. Polycarbonate versions allow the entry of natural daylight. It is tested to and in compliance with EN 12101-2. It is manufactured under the ISO 9001 quality and ISO 14001 environmental management standards.

Product information

Features and benefits

Wide range of applications - Apollo ATI is classed as a dual purpose ventilator, providing both day to day and smoke control ventilation. Apollo ATI is generally installed onto roofs providing high level extract. Polycarbonate versions allow the entry of natural daylight. Either pneumatic or electric controls are available.

Weathered ventilation - Longitudinal flaps and deflectors set within a wind baffle provide aerodynamic ventilation when the weather is wet.

Efficient and weather resistant - Apollo ATI is aerodynamically efficient. The sealing system consists of EPDM profiles which keep air leakage down to a minimum.

Easy to install - Apollo ATI is delivered fully assembled to site. It has a wide range of base profiles to suit most sheeting, curb or glazing applications.

Durable - Apollo is manufactured from tough, corrosion resistant aluminium with stainless steel hinges. It has been tested and certified as fall-through-proof in 300J and 1200J tests by an external test house. It is manufactured under the ISO 9001 quality and ISO 14001 environmental management standards.

High thermal performance – Apollo ATI is highly insulated and air tight, meeting or exceeding today’s energy savings regulations. Its U value can be as low as 1.49 W/m²K.

Certified performance - Apollo ATI has been exhaustively tested and certified to EN 12101-2: 2003 in accredited third party test laboratories and is CE marked.

High acoustic performance – With the aluminium lidded version, a sound reduction of up to 26.0 dB (R’w) may be achieved.

Quality of manufacture - Apollo ATI is manufactured under the ISO 9001 quality standard. Each unit is given a functional test before despatch.

We are at your service

We provide a pre-order design service. We also offer complete project management, installation, wiring and commissioning, which means that we take complete responsibility to ensure that the product is in full working order within one package of works.

Please contact us for more information relating to the application, specification, installation or servicing of this product.

Options

Description

Apollo ATI provides weathered extract ventilation for most kinds of industrial buildings.

Dimensions / size range

  • From 1000mm to 1900mm throat width in 1 mm increments.

  • From 1000mm to 3000mm throat length in 1mm increments.

Base Options

  • Uninsulated
  • Insulated

Lid options

  • 10 mm clear or opaque polycarbonate panel, single chamber + 6 mm solid external sheet
  • 16 mm clear or opaque polycarbonate, 7 skins, 6 chambers, U value of panel 1.8 W/Km²
  • 16 mm grey (non-light transmitting) polycarbonate, 7 skins, 6 chambers, U value of panel 1.8 W/Km²
  • 24mm double skin insulated aluminium infill panel
  • 32mm clear or opaque polycarbonate, 8-10 chambers, U value of panel 1.1 – 1.3 W/Km²

Rubber seals to reduce air leakage when closed.

Colours/ finishes options

  • Mill finish
  • Polyester powder painted to a RAL colour, standard 75 mu

Fixing options

  • Fixing onto curb
  • Fixing onto glazing
  • Fixing onto roof sheeting

Controls options

  • Pneumatic
  • 24V DC electric

For both electric and pneumatic versions, either double action locking mechanisms, failsafe open or failsafe closed.

If used as a smoke ventilator, activation is either by local thermal fuse which opens the unit at a pre-selected temperature, or by responding to an external release signal.

Performance

Performance

Aerodynamic coefficient Up to 0.69
Reliability Re 1,000 (+1000 cycles)
Wind load  Varies with size and options, classified at WL 1500 (1,500 N/m²)
Snow load  Varies with size and options, up to 5,700 N/m² (electric) or 6500 N/m² (pneumatic),
Resistance to heat B 300
Low temperature class T(00) or T(-15)
Materials resistance to fire E (to EN 13501-1)
U value Up to 1.49 W/m²K
Air permeability

Values according to EN 12207:

Pa.



V

[m³/hm²]

V

[m³/hm]

50

4.08

0.76

100

6.52

1.22

200

10.60

1.99

Sound insulation Up to 26.0 dB (R’w)

Compliance

Tested to and in compliance with EN 12101-2 and CE marked.

Tested and certified as fall-through-proof in 300J and 1200J tests by an external test house.
